Accupoint SB

Shear Beam Accupoint Weigh Modules 100~10 000kg

The Accupoint epitomises quality in weighing measurement devices. Incorporating top level protection while maintaining performance specifications, the Accupoint improves safety whilst reducing load cell damage and plant down time.

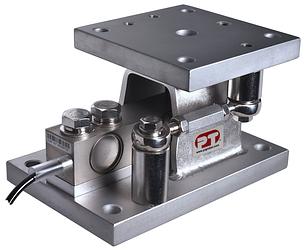

Manufactured of stainless steel with special long life hardened contact points, the Accupoint-SB Weigh Module® includes a high precision stainless steel shear beam load cell welded sealed to IP68. Well suited for outdoor and harsh environment operations, these units provide years of high precision weighing with minimal maintenance. Popular installations include vessel weighing in food processing plants such as dairies as well as chemical and bottling plants. Also ideal for use on tanks and silos in the agricultural industry; the Accupoint-SB is a versatile weigh module.

Available in nine capacities from 100kg to 10t, with typical weighing options up to 40 tonnes in a standard four support vessel the Accupoint-SB also has lateral restraint in one direction for stabilisation while allowing movement at 90 degrees for expansion and uplift restraint to prevent overturning. Add a digital indicator and summing box for a care free complete kit for your installation or use as a stand alone module. Either way, every Accupoint-SB is a self contained weigh point with built in side and uplift restraints for easy installation, only requiring bolting into place.

Accupoint Shear Beam Datasheet Product Brochure and Specifications

SPECIFICATIONS

Signal Output at Capacity	2±0.002 mV/V
Linearity Error	< 0.020% FSO
Non-Repeatability	< 0.010% FSO
Hysteresis	< 0.020% FSO
Creep/(30 mins.)	< 0.016% FSO
Zero Balance	< 1% Capacity
Temperature Effect on Span (/10C)	< 0.011% FSO
Temperature Effect on Zero/10ºC	< 0.015% FSO
Compensated Temperature Range	-10 ~ 40 C
Operating Temperature Range	-40 ~ 70 C
Storage Temperature Range	-50 ~ 70 C
Excitation +ve	RED
Signal +ve	GREEN

Service Load	100% Capacity
Safe Load	150% Capacity
Restraining capacity	See table below
Ultimate Load	300% Capacity
Input Resistance	350Ω ±3.5Ω
Output Resistance	350Ω ±3.5Ω
Insulation Resistance	> 5000 MΩ (@ 50V DC
Excitation Voltage (Rec)	5 ~ 15 V AC/DC
Excitation Voltage (Max)	18 V AC/DC
Cable	6m PUR Dia. 5.0 mm
Material	Stainless Steel, sealed IP68
Excitation -ve	BLACK
Signal -ve	WHITE

DIMENSIONS	CAPACITIES
	Model ACCSSB-100kg ACCSSB-250kg ACCSSB-500kg ACCSSB-1000kg ACCSSB-2000kg ACCSSB-3000kg ACCSSB-5000kg ACCSSB-7500kg ACCSSB-10000kg	Capacity 100kg 250kg 500kg 1000kg 2000kg 3000kg 5000kg 7500kg 10000kg

Dimensions (mm)
Capacity	Order	L	W	H	L1	L2	W1	T1	T2	D	Cable (m)	Lateral (kN)	Uplift (kN)	Weight (kg)
100kg 250kg 500kg 1000kg 2000kg	ACCSSB0100SXXX ACCSSB0250SXXX ACCSSB0500SXXX ACCSSB1000SXXX ACCSSB2000SXXX	178	122	105	114.6	152.4	89	16	16	11	6	5	30	6.9
3000kg 5000kg	ACCSSB3000SXXX ACCSSB5000SXXX	235	152.4	137	152.4	184.2	101.6	23	23	17.5	6	7.5	69	13.6
7500kg 10000kg	ACCSSB7500SXXX ACCSSB010TSXXX	300	200	195	200	255	155	33	33	22	6	10	100	33.2

(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
