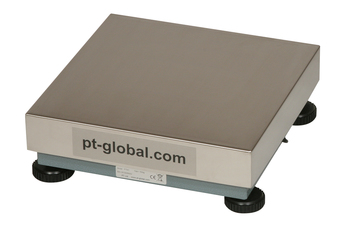

PT541-30kg Base
400x400x120mm SKU: J13050030M4040
PT541 GENERAL PURPOSE PLATFORM SCALE BASESThe PT541
general purpose base is the perfect addition to the PT412 for dual pan
counting scales or for customers wanting to assemble their own scales.
Available in capacities 30kg to 600kg and in three different sizes, the
world has more scales in this range than any other.
The PT541 features are listed below.
FEATURESThe PT541 features are listed below.
- General purpose platform scale
- Can be plugged directly into the PT412 counting scale
- Suitable for extended range Parts Counting
- Stainless steel platter
- Sturdy steel frame
- Adjustable feet
- Level bubble
- 3 metre cable with connector
| Model | PT541S-30kg | PT541S-60kg | PT541S-150kg |
|---|---|---|---|
| Platform Size(S) | 400mm (15.8") W x 400mm (15.8") D x 120mm (4.7") H, tubular steel base, stainless top | ||
| Model | PT541M-60kg | PT541M-150kg | PT541M-300kg |
| Platform Size(M) | 600mm (23.6") W x 600mm (23.6") D x 145mm (5.7") H, tubular steel base, stainless top | ||
| Model | PT541L-150kg | PT541L-300kg | PT541L-600kg |
| Platform Size(L) | 800mm (31.5") W x 800mm (31.5") D x 175mm (6.9") H, tubular steel base, stainless top | ||
| External Resolution | Max. 1/5000 | ||
| Max. Safe Load | 120% F.S. | ||
| Max. Load | 150% F.S. | ||
| Operating Temp. | 0 ~ +40 Deg. C | ||
| Cable | 1.5m 4 core | ||
| In the Box | One Basework | ||
