PT541-600kg Base - Scale Bases Only

J13050600M8080 - 800x800x175mm

Large 8f462e925c

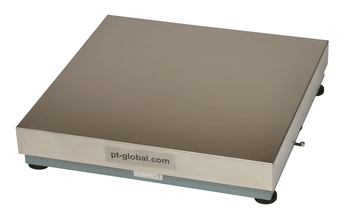

PT541 GENERAL PURPOSE PLATFORM SCALE BASESThe PT541 general purpose base is the perfect addition to the PT412 for dual pan counting scales or for customers wanting to assemble their own scales. Available in capacities 30kg to 600kg and in three different sizes, the world has more scales in this range than any other.


The PT541 features are listed below.
FEATURES
  • General purpose platform scale
  • Can be plugged directly into the PT412 counting scale
  • Suitable for extended range Parts Counting
  • Stainless steel platter
  • Sturdy steel frame
  • Adjustable feet
  • Level bubble
  • 3 metre cable with connector
ModelPT541S-30kgPT541S-60kgPT541S-150kg
Platform Size(S) 400mm (15.8") W x 400mm (15.8") D x 120mm (4.7") H, tubular steel base, stainless top
ModelPT541M-60kgPT541M-150kgPT541M-300kg
Platform Size(M) 600mm (23.6") W x 600mm (23.6") D x 145mm (5.7") H, tubular steel base, stainless top
ModelPT541L-150kgPT541L-300kgPT541L-600kg
Platform Size(L) 800mm (31.5") W x 800mm (31.5") D x 175mm (6.9") H, tubular steel base, stainless top
External ResolutionMax. 1/5000
Max. Safe Load120% F.S.
Max. Load150% F.S.
Operating Temp.0 ~ +40 Deg. C
Cable1.5m 4 core
In the BoxOne Basework
