PT410-6kg Counting Scale - Counting Scale - PT410

J13030006M0XXX - 230x300mm Weigh Base

Large d212416776

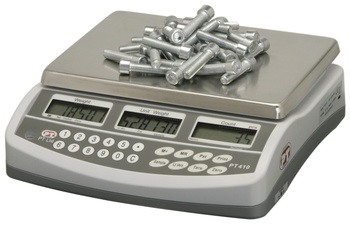

PT410 HI RESOLUTION COUNTING SCALES

Designed with simplicity and ease of use in mind the PT 410 Hi Resolution Counting Scale is a feature packed standard bench top counting scale. This unit will suit any market sector which requires accurate precision counting and weighing up to 30kg.

The PT 410 is available in four capacities and is fitted with RS232 as standard on all capacities.

FEATURES
  • Parts Counting
  • Memory Accumulation
  • Count and weigh settable limits
  • Preset Counts with audible alarm
  • RS232 as standard
  • 1/60000 display resolution, (1/600000 internal resolution)
  • Battery operation
  • ABS case, stainless steel platter, dust cover
  • 22mm backlit LCD display
  • Units switching
  • Automatic Unit Weight Update
  • Tare addition and Subtraction
Model PT410-3kg PT410-6kg PT410-15kg PT410-30kg
Capacity x divn.
3000 g x 0.05 g 6000 g x 0.1 g 15 kg x 0.2 g 30 kg x 0.5 g
Platform Size 300mm (11.8") W x 225mm (8.9") H
Display Front facing 3 panels of 6 digits, 22 mm (7/8") high
7-segment LCD display with back light. Shows multiple weighing units plus Cal and low battery indicator
RS232 Interface Output for printer
Keyboard Sealed colour coded membrane
Units g/lb kg/lb
Power 9 VDC, 800mA output with center positive, UL Approved, A/C adapter
Rechargeable battery
Battery Life Approximately 70 hours
Operating Temp 0° C - 40° C
Certifications CE compliance
In the Box
One Scale, one User Manual, One power adaptor
