PT100SB - PT100SB Summer & Junction Boxes

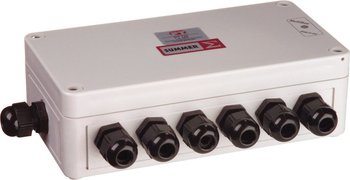

EP100SB0006XXX - 6 Way Summer Box

N_pt100sb_6_large

  • Liquid tight strain relief cable fittings
  • Accepts cables from 3.5 to 8mm in diameter
  • Accepts 2 to 6 load cell inputs with section trim pots for weighbridge setup
  • Span adjustment pots non-interactive
  • Mounted in weather tight enclosure - IP66

    Signal trim method to maintain load cell temperature compensation and minimise interactions of load cell adjustments.5 % nominal individual loadcell adjustment5 % overall span adjustment, no need for indicator re-calibration after cornering5 % section trim for 6 and 8 cell versions to aid weigh bridge setup.high impact sealed polycarbonate case.
