100 metre pack 3.6 - Consumables

A-4C3.6-0100 - Load Cell Cable

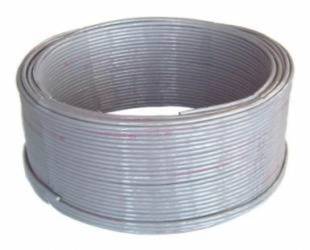

N_cab_4_31_100m_large
Specialist load cell cable is a must if you want to keep your system working at its optimum level, always insist on quality PT load cell cable. We have a range of load cell packs to suit most situations, from small 10metre packs to large 1000metre rolls. Don't forget when joining cable to use our standard jointing kit (instructions included) this kit will join all sizes of our load cell cable.
PT provides a range of convenient cable packs idealy suited to extension of load cell cables or connection connection of junction boxes, indicators, conditioners, etc. and transfer of signals for remote displays or analogue signals.
All cables are screened with flexible multi stranded conductors. Jackets and diameters vary to suit the application.
4 core cable can be used for 4 core load cells or general signal transmission.
6 core cables are suited to 6 core load cells, extension of 4 core load cells and connection to indicators where use of sense wires is desired to ensure there is no loss in accuracy that can be observed when the length of 4 core load cell cables is changed.

Cable

Cable 4C3.6-XXXX
4C4.5-XXXX
6C5.5-XXXX
6C6.5-XXXX
6C7.5-XXXX
Conductors
4x 28AWG
(0.08 mm2)
4x 24AWG
(0.2 mm2)
6x 24AWG
(0.2 mm2)
6x 24AWG
(0.2 mm2)
6x 24AWG
(0.2 mm2)
Stranding
7 x 0.127mm,
tinned copper
19 x 0.127mm, tinned
annealed
copper, 93.7 Ω/km
19 x 0.127mm, tinned annealed copper, 93.7 Ω/km 19 x 0.127mm, tinned annealed copper, 93.7 Ω/km
Conductor
Insulation
SR PVC, OD 1.1mm
LDPE,
OD 1.1mm providing excellent insulation and moisture resistance
LDPE,
OD 1.1mm providing excellent insulation and moisture resistance
LDPE,
OD 1.1mm providing excellent insulation and moisture resistance
LDPE,
OD 1.1mm providing excellent insulation and moisture resistance
Screen
Copper braid,
tinned,
78% coverage
Aluminium foil providing 100% coverage
24AWG, 19 x 0.127mm, tinned annealed copper drain wire
Copper braid,
tinned,
78% coverage
Diameter
(OD Max.)
3.9mm 4.5mm
5.5mm
6.5mm
7.9mm
Jacket PVC PUR
PUR
PUR
PUR
1.8mm thick
Length As specified (in m) by the -XXXX component of the part code above
Operating Temp. -50° C to +105° C -40° C to
+80° C
-40° C to
+80° C
-40° C to
+80° C
-40° C to
+80° C
