Product Range » Weighing Scales »
Scale Bases Only
(30kg~600kg) Connect a PT display or use your own display

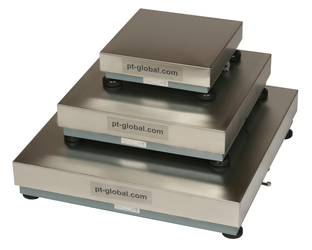

| The
PT541 general purpose base is the perfect addition to the PT412 for
dual pan counting scales or for customers wanting to assemble their own
scales. Available in capacities 30kg to 600kg and in three different
sizes, the world has more scales in this range than any other. The PT541 features are listed below.
|
 |
| Model | PT541S-30kg | PT541S-60kg | PT541S-150kg |
|---|---|---|---|
| Platform Size(S) | 400mm (15.8") W x 400mm (15.8") D x 120mm (4.7") H, tubular steel base, stainless top | ||
| Model | PT541M-60kg | PT541M-150kg | PT541M-300kg |
| Platform Size(M) | 600mm (23.6") W x 600mm (23.6") D x 145mm (5.7") H, tubular steel base, stainless top | ||
| Model | PT541L-150kg | PT541L-300kg | PT541L-600kg |
| Platform Size(L) | 800mm (31.5") W x 800mm (31.5") D x 175mm (6.9") H, tubular steel base, stainless top | ||
| External Resolution | Max. 1/5000 | ||
| Max. Safe Load | 120% F.S. | ||
| Max. Load | 150% F.S. | ||
| Operating Temp. | 0 ~ +40 Deg. C | ||
| Cable | 1.5m 4 core | ||
| In the Box | One Basework | ||
Click on the individual products below for more details, documentation and related products.
|
PT541-30kg Base
|
|
|
PT541-60kg Base
|
|
PT541-60kg Base
|
|
|
PT541-150kg Base
|
|
|
PT541-150kg Base
|
|
PT541-150kg Base
|
|
|
PT541-300kg Base
|
|
|
PT541-300kg Base
|
|
|
PT541-600kg Base
|
