Product Range » Weighing Scales »

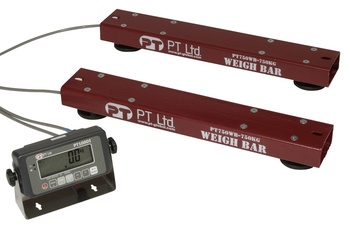

WB Weigh Bar Scales
(1500kg)
| Our
popular farming and general purpose dual bar system of 1500kg capacity.
These scales are ideal for veterinary and general large animal
weighing. At only 16kg, these scales are easily handled, yet rugged in
construction allowing for years of trouble free weighing in harsh
conditions. Place the bars on any reasonably flat stable surface and
you have a perfect transportable platform to go under crates, cages,
bins, pallets etc. Engineered from hot dip galvanised steel we have
included mounting holes to take most stock crates and crushes or build
your own platform. This system allows for a weighing up to 1500kg in a
lightweight kit of only 16kg that is so easy to stow away or store when
the day's weighing is done. The Weigh Bar features are extensive and listed below. FEATURES
|
|
| Model | Weighbar Kit 1.5 |
|---|---|
| Capacity
x divn. |
1500kg x 0.5kg |
| Display | PT100DI |
| Size | Each bar 0.6m x 0.1m x 110mm high (adjustable height) |
| Fixing Centres | 12mm slotted holes for centres 544 - 570 mm |
| Cable |
5 metres of 7.5mm heavy duty PUR sheathed cable, with IP67 connector to indicator on each bar |
| Keyboard | Sealed colour coded membrane |
| Units | kg/lb |
| Power | 9V DC with AC mains power adaptor |
| Battery |
Optional rechargeable battery |
| RS232 Interface | Optional |
| Operating Temp | -10° C ~ +40° C |
| Certifications | CE compliance |
| In the Box |
Two
Weighbars, one indicator, one indicator Manual, one Installation Manual |
|
Weigh Bar Assembly 1500kg
|
