Remote Displays
| RD1 A Large ALPHA-Numeric remote display using 120mm flip-flop digits for easy reading under all lighting conditions that connects to the PT200M, PT200P, PT200X and PT600R indicators. Each digit comprises 35 individual segments to ensure all ALPHA characters can be correctly displayed. The digit segments have minimal mass for fast switching speeds and extreme reliability. RD2 A Large LED remote display with 120mm high digits that are designed for use in bright sunlight that connects to the PT200M, PT200P, PT200X and PT600R indicators. The Day-Bright LED's are arranged into dual rows to increase digit definition making the unit very readable from wide viewing angles. The RD2 is weatherproof and suitable for external mounting applications. RD3 A compact remote display that can be panel mounted or desk mounted and connects to the PT200M, PT200P, PT200X and PT600R indicators without needing any RD3 configuration. |

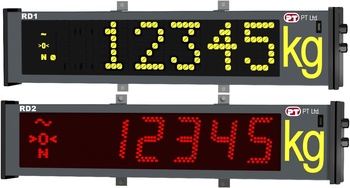

RD1,
RD2 RD3  |
| SPECIFICATIONS RD1, RD2 |
|
RD3 | |
| 120mm
Display . . . . . Display Window Visability Update Rate Temperature Humidity Power Supply . PT200M/P/X & PT600R Indicators . Other Australian Brands . PC Mode . SPECIAL FEATURES Communications . Primary Port Formats . . . STRUCTURE Case Size . Weight Housing . . . Mountings . . APPROVALS Australia . EUROPE USA |
RD1
has flip-flop digits, RD2 has 'Day-Bright' LED's RD1 and RD2:
Status annunciators for Motion, Centre of Zero and Net mode (when
connected to PT indicators) 430mm x 100mm Up to 60m 10 updates per second -10 ~ 50°C <90% non condensing 110 ~ 240V AC, 50 ~ 60 Hz, 25w AC Auto-detects all A, B, & C outputs Auto-detects most common models Addressable to accept conforming data . RS-232/422/485 - 2 wire (receive only) 20mA serial current loop wire (receive only) RS-422/485 - 4 wire (receive and transmit for networking) . 600mm(L) x 148mm(H) x 78mm(D) 3.4kg Sturdy aluminium extrusion, weatherproof sealing with laminated shatterproof glass window Fitted with top & bottom mounting clamps . . C-Tick (N2708) Complies with NSC S1/0 for auxiliary devices CE approved FCC approval pending. |
Display . Update Rate Temperature Humidity Power Supply . PT200M/P/X & PT600R Indicators . Communications Case Materials . . Dimensions . Options . Weight |
20mm
LCD, 6 digits, LED backlighting. 10 updates per second -10 ~ 50°C <90% non condensing 12~24VDC or 4x AA alkaline cells with optional desk mount. Auto-detects all A, B, & C outputs RS-232 - 2 wire (receive only) ABS Silicon Rubber, Nylon, Acrylic (no halogen used) 164x77x35 mm (as panel mount). Desk mount shell and battery compartment. 0.36kg |
|
RD1 Alpha Numeric Remote
|
|
RD2 Bright LED Remote
|
|
RD3
|
