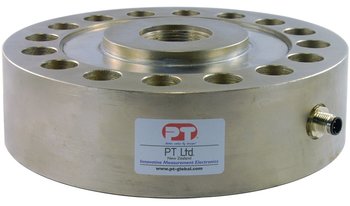

LPCS Stainless Universal
(1t ~ 100t Stainless Steel Welded) Tension/Compression Testing machine, Crane, High capacity mining
The
LPCS is fitted with an industry standard M12 sensor connector with IP67
sealing and is supplied with a straight mating connector. The connector
simplifies installation and maintenance and a cable type and length to
suit the requirements of the installation can be selected from the
cable packs offered by PT. Six wire cables should be installed by
connecting the Sense+ with the excitation+ to terminal 1 and the Sense-
with the excitation-to terminal 2 inside the connector.
|
 |
| SPECIFICATIONS |
|||
| Signal
Outpu at Capacity Linearity Error Non-Repeatability Combined Error Hysteresis Creep/(30 mins.) Zero Balance Temperature Effect on Span(/10C) Temperature Effect on Zero/10ºC Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve |
2±0.01
mV/V < 0.05% FSO < 0.020% FSO < 0.050% FSO < 0.050% FSO < 0.030% FSO < 2% Capacity < 0.02% FSO < 0.025% Capacity -35 ~ 65 C -10 ~ 50 C -50 ~ 85 C Connector Pin 1 Connector Pin 4 |
Service
Load Safe Load Safe Side Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Connector Material Sealing Excitation -ve Signal -ve |
100%
Capacity 150% Capacity 100% of axial load 300% Capacity 750Ω ±5Ω 700Ω ±3Ω > 5000 MΩ (@50 VDC) > 5 ~ 15 V AC/DC 20 V AC/DC M12 Sensor type... All Stainless Steel IP67 welded Connector Pin 2 Connector Pin 3 |
| DIMENSIONS | CAPACITIES | |
 |
Model LPCS-1t LPCS-2.5t LPCS-5t LPCS-10t LPCS-25t LPCS-50t LPCS-100t |
Capacity 1t 2.5t 5t 10t 25t 50t 100t |
| Dimensions
(mm) |
||||||||||||
| Capacity |
Order | A | B |
C | D | E | F | G | H |
Ø1 | J | Weight(kg) |
| 1t |
LPM1000T000XX2 | 35 | 105 |
3 | 65 | 35 | 22.5° | 8 Holes Ø 6.5 PCD 88.9 | 5/8"
- 18UNF |
11 | 6.5 | 1.6 |
| 2.5t |
LPM2500T000XX2 | 35 | 105 |
3 | 65 | 35 | 22.5° | 8 Holes Ø 6.5 PCD 88.9 | 5/8"
- 18UNF |
11 | 6.5 | 1.6 |
| 5t |
LPM5000T000XX2 | 35 | 105 |
3 | 65 | 35 | 22.5° | 8 Holes Ø 6.5 PCD 88.9 | 5/8" - 18UNF | 11 | 6.5 | 1.6 |
| 10t | LPM010TT000XX2 | 44.5 | 155 | 3 | 90 | 65 | 15° | 12 Holes Ø 10.5 PCD 130.2 | 1-¼" - 12UNF | 17 | 10 | 4.7 |
| 25t | LPM025TT000XX2 | 44.5 | 155 | 3 | 90 | 65 | 15° | 12 Holes Ø 10.5 PCD 130.2 | 1-¼" - 12UNF | 17 | 10 | 4.7 |
| 50t | LPM050TT000XX2 | 63.5 | 205 | 6.5 | 115 | 95 | 11.25º | 16 Holes Ø 13.5 PCD 165.1 | 1-¾" - 12UN | 20 | 13 | 11.7 |
| 100t | LPM100TT000XX2 | 90 | 280 | 13 | 152 | 125 | 11.25º | 16 Holes Ø 17.5 PCD 228.6 | 2-¾" - 8UN | 25 | 16 | 29.5 |
Click on the individual products below for more details, documentation and related products.
|
LPCS-1 1000kg M12 PLUG
|
|
|
LPCS-2.5 2500kg M12 PLUG
|
|
|
LPCS-5 5000kg M12 PLUG
|
|
|
LPCS-10 10000kg M12 PLUG
|
|
|
LPCS-25 25000kg M12 PLUG
|
|
|
LPCS-50 50000kg M12 PLUG
|
|
|
LPCS-100 100000kg M12 PLU
|
